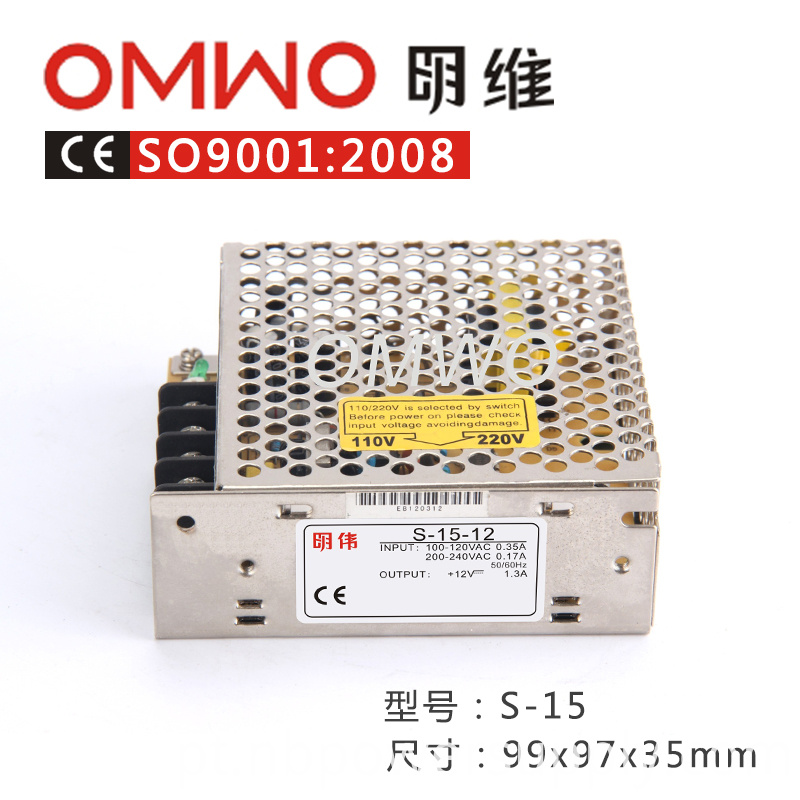

Única saída 15W S-15 Switching Power Supply

Informação básica

Modelo:  S-15-2

Descrição do produto

N ° de Modelo: S-15-2 Garantia:> 2 Anos Tensão de Entrada: 24V Modo de Partida: Auto-excitada Switching Power Supply Sistema de Alimentação: Terminal de Distribuição de Energia Sistema de Modulação do Equipamento: PFAW Marca: Omwo Especificação: 159 * 98 * 38mm HS Código: 8504401990 Tipo de saída: Single Potência de saída: 1 - 50W Modo de conexão: Série Switching Voltagem de alimentação de energia Modo de regulagem: Freqüência Tipo de modulação Transmissão de energia: Two-way Transmission Certificação: CE, UL, RoHS, ISO, CCC, CB, CSA : OMWO Origem: Zhejiang 1. Alta eficiência e bom preço \ n2. Filtro EMI embutido \ n3.100% teste de queima de carga total \ n4. Baixa ondulação e ruído de saída \ n5. Proteção: Sobrecarga / Sobretensão / Curto-circuito \ n6.GRÁTIS DE VIDA ÚTIL \ n \ nEspecificações

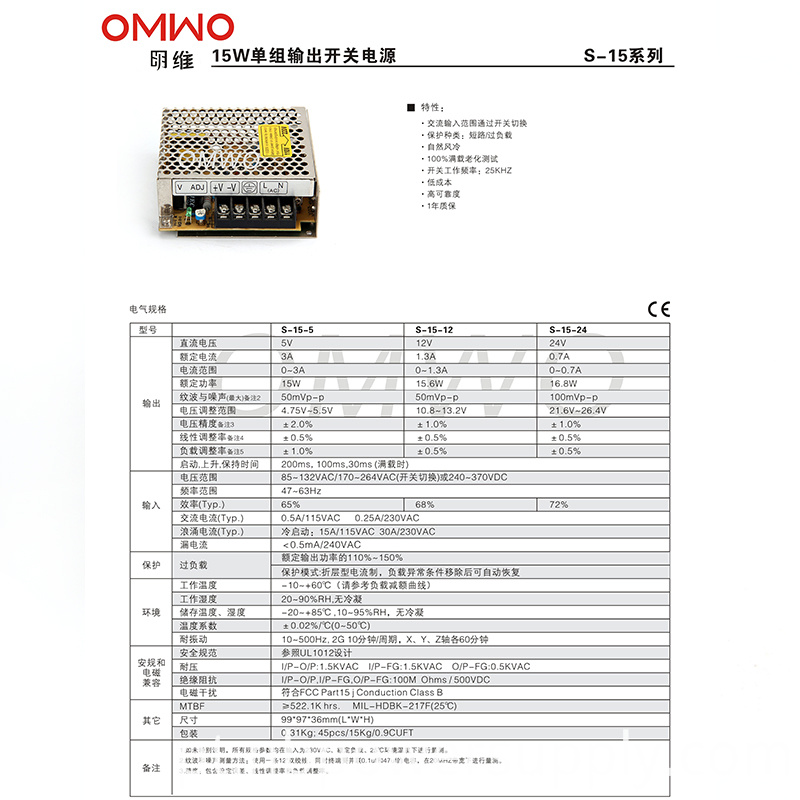

  MODEL S-15-5 S-15-12 S-15-24 S-15-48
Output DC Voltage  5V 12V 24V 48V
Rated current  3A   1.3A 0.6A  0.3A
Current range 0-3A  0-1.3A  0-0.6A 0-0.3A
DC power    15W  15W 15W 15W
Voltage ADJ.range  +10,-5%  ±10% ±10% ±10%
Voltage tolerance   ±2% ±1% ±1% ±1%
Ripple and noise  50mVp-p 50mVp-p 50mVp-p 50mVp-p
Intet stability  ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±0.5% ±0.5% ±0.5%
Intput AC voltage range  AC100~240V 47~63Hz ; 240~370VDC
Current  0.5A/115V 0.25/230V
Effi ciency  78%  80%  82% 80%
AC Inrush current  Cold-start current 15A/115V 30A/230V
Leakage current  < 0.5mA/240VAC
Protection Overload  105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
   Over voltage  5.75~6.75   13.8~16.2V 27.6~32.4V 55.2~64.81
  200ms,100ms,30ms
Safety Setup,rise,hold up time 200ms,100ms,30ms
     Vibration  10~500Hz,2G 10min,/1 cycle
  Withstand voltage  Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
  Isolation resistance  Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
      ±0.03%/°C (0~50°C )
Environment Temperature coeffi cient
  Working temperature and humidity -10°C ~+60°C,20%~90%RH
  Store temperature and humidity -20°C ~+85°C,10%~95%RH
    Overall dimension  99×97×35mm   60PCS/CARTON
Other Weight  0.31Kg
Certificate CE EMC Authenticate  EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
   EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
Single Output 15W S-15 Switching Power SupplySingle Output 15W S-15 Switching Power SupplySingle Output 15W S-15 Switching Power SupplySingle Output 15W S-15 Switching Power SupplySingle Output 15W S-15 Switching Power Supply \ n Single Output 15W S-15 Switching Power Supply

Grupo de Produto : Fonte de alimentação de comutação de saída única
